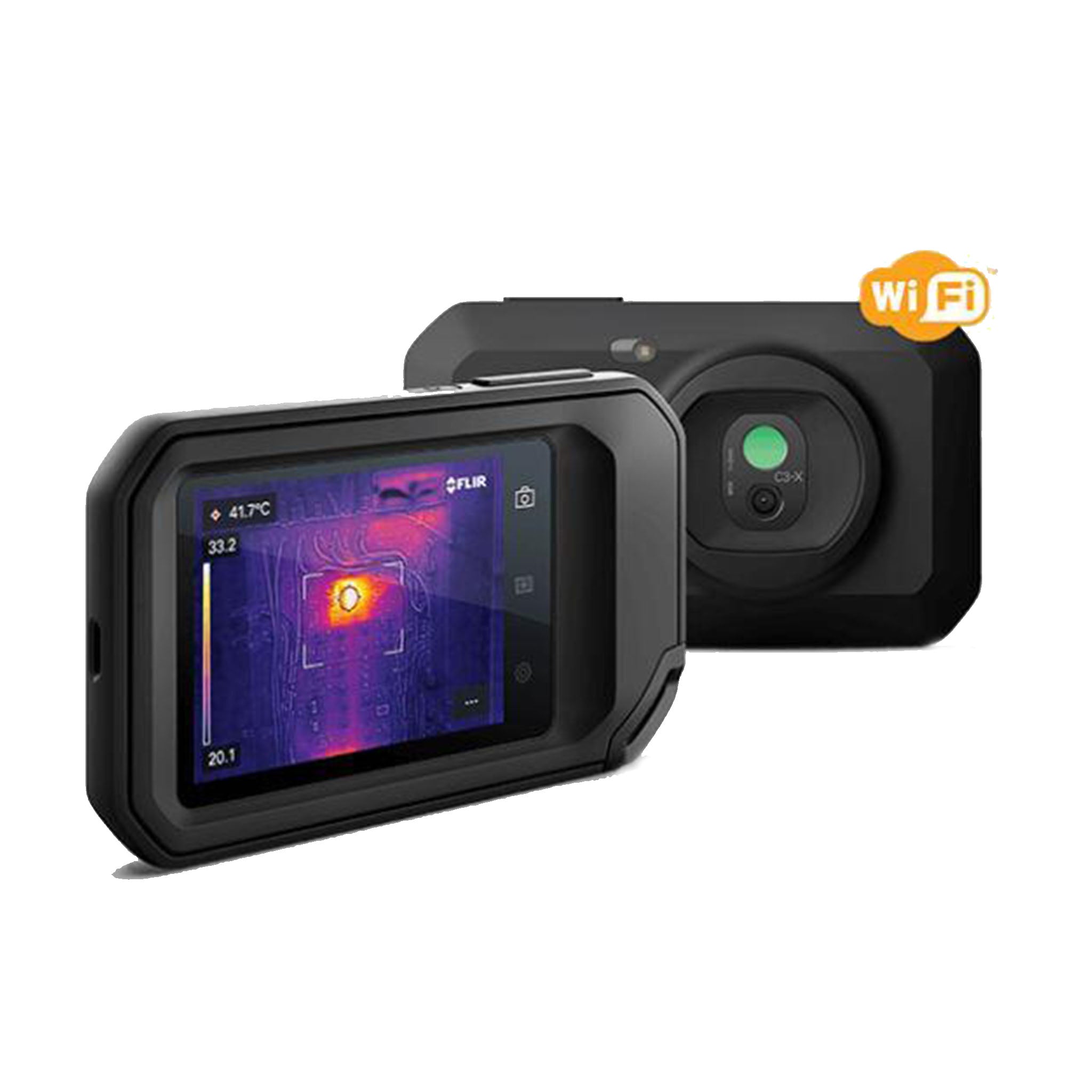

Flir C5 Thermal Imaging Camera


Ask a question about this product


With the FLIR C5 in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.

Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight.

The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Camera Size: 138 x 84 x 24mm

IDENTIFY AND TROUBLESHOOT: Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span.

DOCUMENT AND SHARE: Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers.

RUGGED, RELIABLE, COMPACT: Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2m drop.


R Sensor 160 x 120
Thermal Sensitivity/NETD <0.07°C
Field of View (FOV) 41 x 31°
Minimum Focus Distance Thermal: 0.15 m (0.49 ft)
MSX®: 1 m (3.3 ft)
Image Frequency 9 Hz
Focus Focus Free
Spectral Range 7.5 to 14.0 µm
Digital Camera 19,200 pixels
Digital Camera Focus Fixed Focus
Image Modes Thermal, visual, MSX®, Picture-in-Picture
Image Gallery Yes
MSX® Adds visual details to full resolution thermal image
Colour Palettes Iron, Rainbow, Rainbow HC, Gray
Auto Orientation Yes
Touch Screen Yes, capacitive
Storage Media Internal memory, at least 500 sets of images
Image File Format Standard JPEG with 14-bit measurement data included
