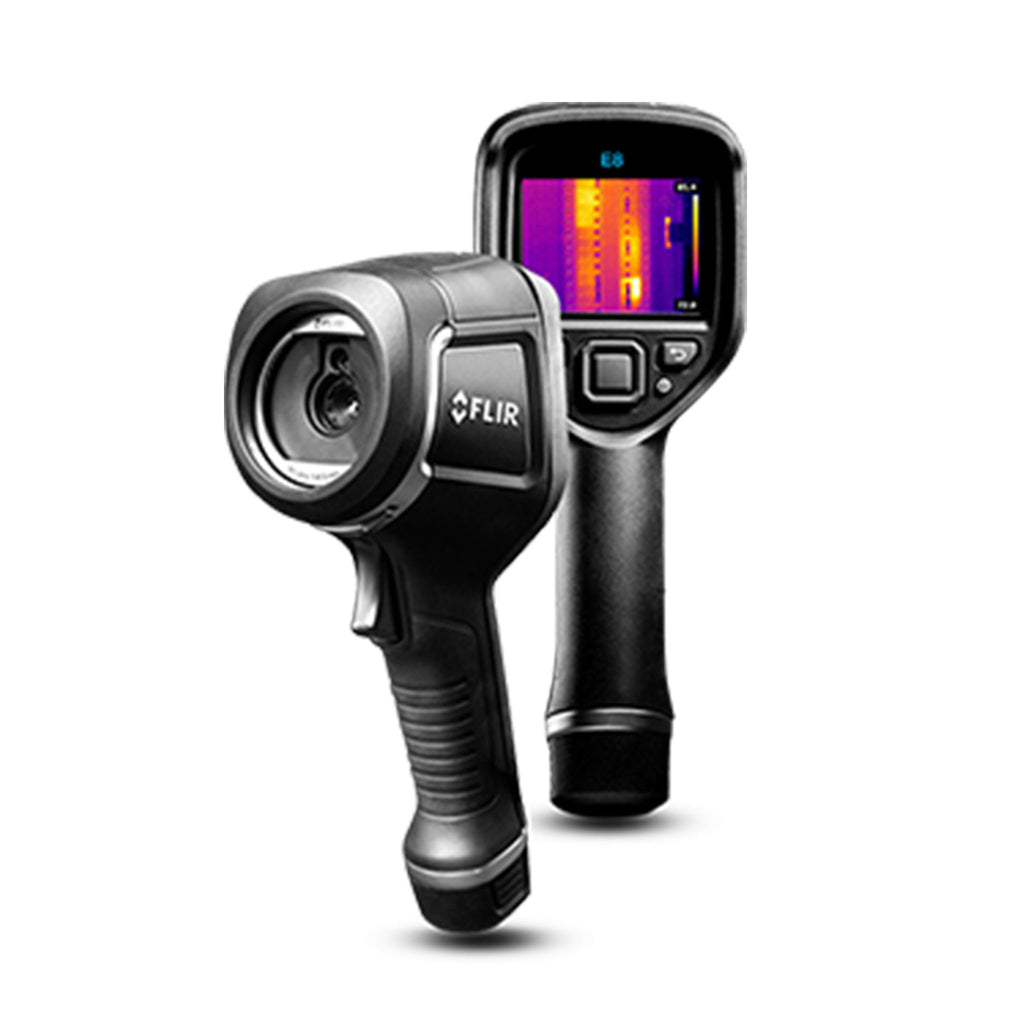

Flir E8-XT Thermal Imaging Camera

FLIR E8-XT

$6,044.50 AUD inc. GST

Ask a question about this product

PRODUCT DESCRIPTION

The Flir E8 camera has high resolution and is designed for contractors who need a very high level of resolution. Now you can afford the ultimate inspection tool. Gain a competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment.

A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

From the 4800-pixel thermal image clarity of the E4 to the E8's incredible 320x240 detector with 76,800 pixels, FLIR Ex-Series cameras offer a resolution to fit the target size, working distance, and detail required for your application as well as your budget.

MSX adds key details from the onboard visible light camera to the entire infrared image in real-time. The result: an all-in-one thermal picture with numbers, labels, and other structural features intact so you'll instantly recognize where the heat issue is.

Specifications

Model Number	FLIR E8-XT
Imaging and Optical Data
IR Resolution	320 × 240
MSX Resolution	320 × 240
Thermal Sensitivity	<0.06°C
Field of View	45° × 34°
Focus	Focus Free
Detector	Uncooled Microbolometer
Screen	3.0 in. 320 × 240 colour LCD
Frame Rate	9 Hz
Analysis
Image Modes	IR image, visual image, MSX, picture-in-picture, thumbnail gallery

Multi-Spectral Dynamic Imaging (MSX)	IR image with enhanced detail presentation
Picture-in-Picture	IR area on the image
Temperature Range	–4° F to 482°F (–20° to 250°C)
Accuracy	±2% or 2°C
Measurement Modes	3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)
Alarm	Blue below or red above set temperature
Emissivity Correction	Variable from 0.1 to 1.0
Set-Up
Colour Palettes	Iron, Rainbow, and Gray
Set-up Commands	Local adaptation of units, language, date and time formats
Image Storage
Storage Capacity	Internal memory stores at least 500 sets of images
Storage Mode	Simultaneous storage of images in IR, visual and MSX
File Formats	Standard JPEG, 14-bit measurement data included
Other
Battery Type / Op Time	~4 hours
Dimensions / Weight	/ 1.27 lbs (0.575 kg)
Drop	2 meter / 6.6 ft
Warranty	2 Year Tool Warranty - 10 Year Sensor Warranty
